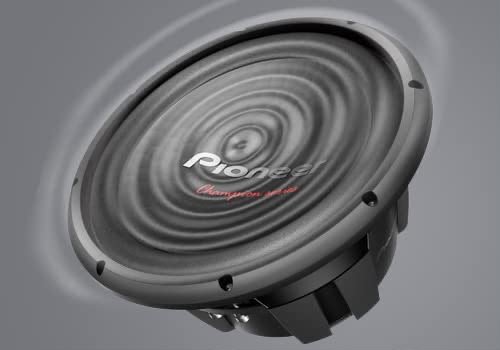

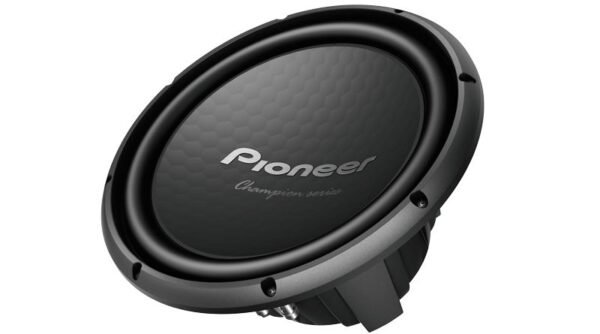

The Pioneer TS-W1202D4 Champion Series 12-Inch Subwoofer is designed for car audio enthusiasts who want powerful, deeper and louder bass with high endurance. Its heavy-duty construction, rigid seamless cone and honeycomb design cap provide excellent power transmission and a stronger cone structure for controlled and impactful bass performance.

Featuring 1500W maximum power handling and 400W nominal power, this 12-inch subwoofer is built to deliver strong low-frequency performance. The large magnet and high-heat-resistant voice coil help provide reliable performance, while the dual-layer fiber-reinforced elastic polymer surround enhances durability and allows the cone to move smoothly.

The subwoofer features a 4-ohm single voice coil, making it suitable for enclosure-based car audio installations. Its firmly enclosed bottom basket and powerful motor assembly help maintain accurate cone movement even during high-power operation.

Brand & Model Pioneer TS-W1202D4 Champion Series 12-Inch Subwoofer

Brand: Pioneer
Model No.: TS-W1202D4
Series: Champion Series
Type: Enclosure Use
Size: 12″ (30 cm)
Voice Coil: Single Voice Coil
Impedance: 4 Ohms
Color: Black

Pioneer TS-W1202D4 Champion Series 12-Inch Subwoofer Key Specifications

Maximum Power: 1500W
Nominal Power: 400W
Sound Pressure Level: 92 dB (±1.5 dB) in car
Frequency Range: 20Hz ~ 1.6kHz (-20 dB)
Cone Size: 12″ (30 cm)
Cone Material: Injection Molded PP
Terminal: Silver Push Terminal
Surround Material: Dual Layer Fiber Reinforced Elastic Polymer Surround

Key Features

• High power handling and high endurance
• Light and rigid honeycomb design seamless cone
• Dual-layer fiber-reinforced elastic polymer surround
• High heat resistance voice coil
• Large magnet with high heat dissipation
• Double-stacked large magnets
• Firmly enclosed bottom basket

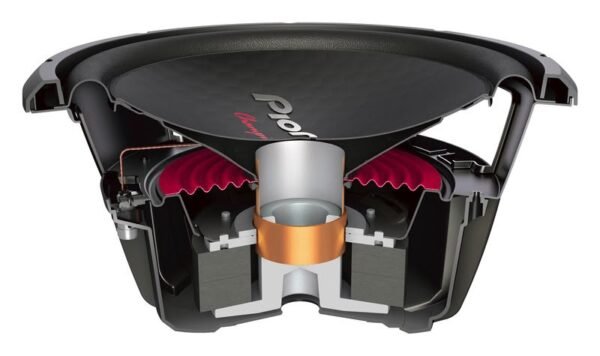

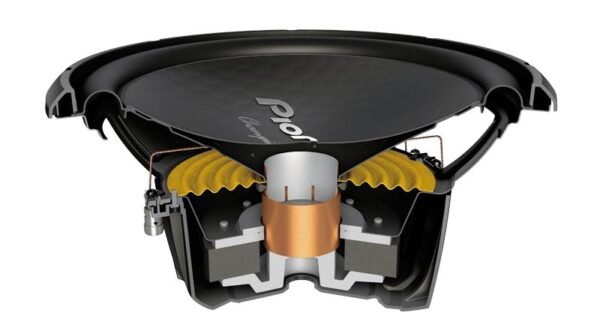

• Large and powerful motor assembly
• Heavy magnetic circuit for improved performance

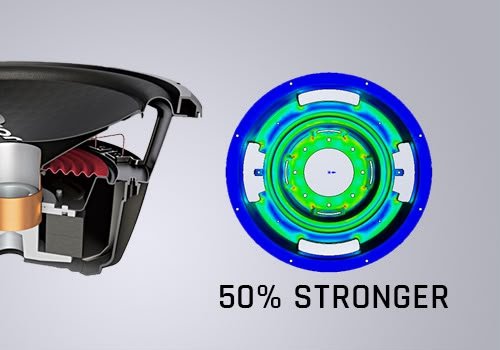

• Optimized basket for accurate cone movement
• Designed for deeper and louder bass

Installation Information

Mounting Depth: 157 mm (6 1/8 inch)
Cutout Hole: 283 mm (11 1/8 inch)
Dimensions: Φ327 × 175 mm
Weight: 5.9 kg
